Mixing your resin materials on site needn’t be a hassle with our extensive range of resin mixers. Our pan resin mixers blend resin and gravel materials evenly to ensure a consistent mixture. This therefore avoids dry spots or pooling of the resin within the drum.
We do not advise cement mixers for resin bound surfacing. This is because any aggregate laid which isn’t evenly coated in resin won’t glue correctly. This can therefore cause the surface to fail.
Manufactured to the highest quality, SoRoTo mixers are specially designed and manufactured to withstand the toughest of environments that machinery can face on building sites. With efficient but quiet motors and rugged, durable designs, each SoRoTo upright pan mixer is perfect for contractors who require high-capacity output machines which are efficient, portable and reliable.

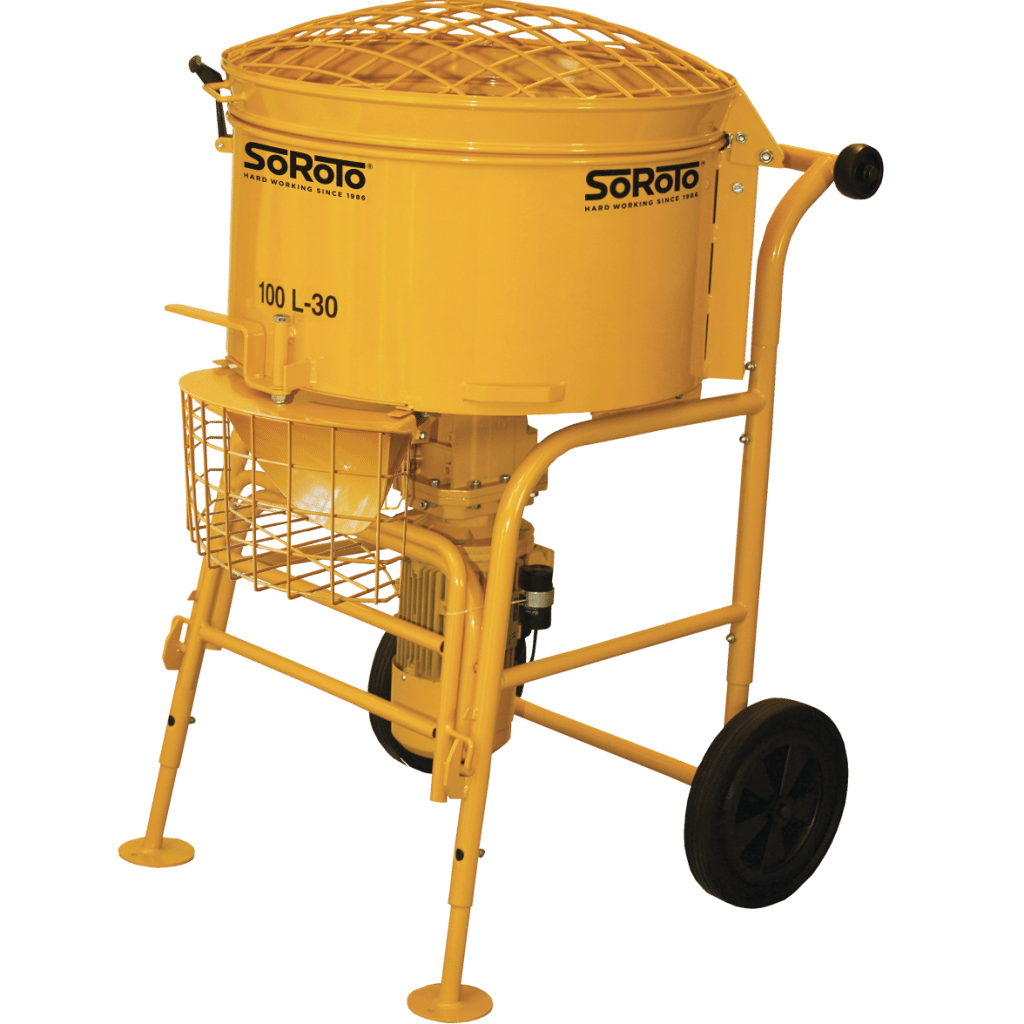

100L
Mixing Capacity (L): 100
Mixing Capacity (KG): 234
Current: 110v/230v
Motor: 1.1kW
Weight: 98KG
Height: 1090-1270mm
Width: 680mm
Depth: 800mm
With the meteoric rise of resin-bound gravel sweeping across the UK, contractors are heavily reliant on the most important piece of equipment in their van, the Mixer. As it is absolutely imperative that aggregate and resin are combined evenly and quickly to ensure maximum time to work or trowel the product into place before the resin starts to cure, it’s important to make sure that you have a mixer with enough capacity, power, and efficiency to handle the demands of mixing this dense, sticky mixture.
Also ideally suited for contractors who have a requirement for mixing large amounts (up to 240kg approximately) of materials, such as mortar, render, plaster, screed, and concrete, exactly where they need it. As the SoRoTo 100L Mixer is narrow enough to fit through standard doorways, it can be taken inside and right to where you need it, instead of having to down tools to go outside to carry small buckets of mixed material back to where you are working. This increases productivity and profitability, two essential ingredients for success.
The SoRoTo 100L is ideal for almost any mixing job performed by professionals. If you are planning on mixing material containing aggregate 8mm or larger, we highly recommend using rubber paddles to help reduce strain on the motor and avoid jamming aggregate between the pan and the paddle.

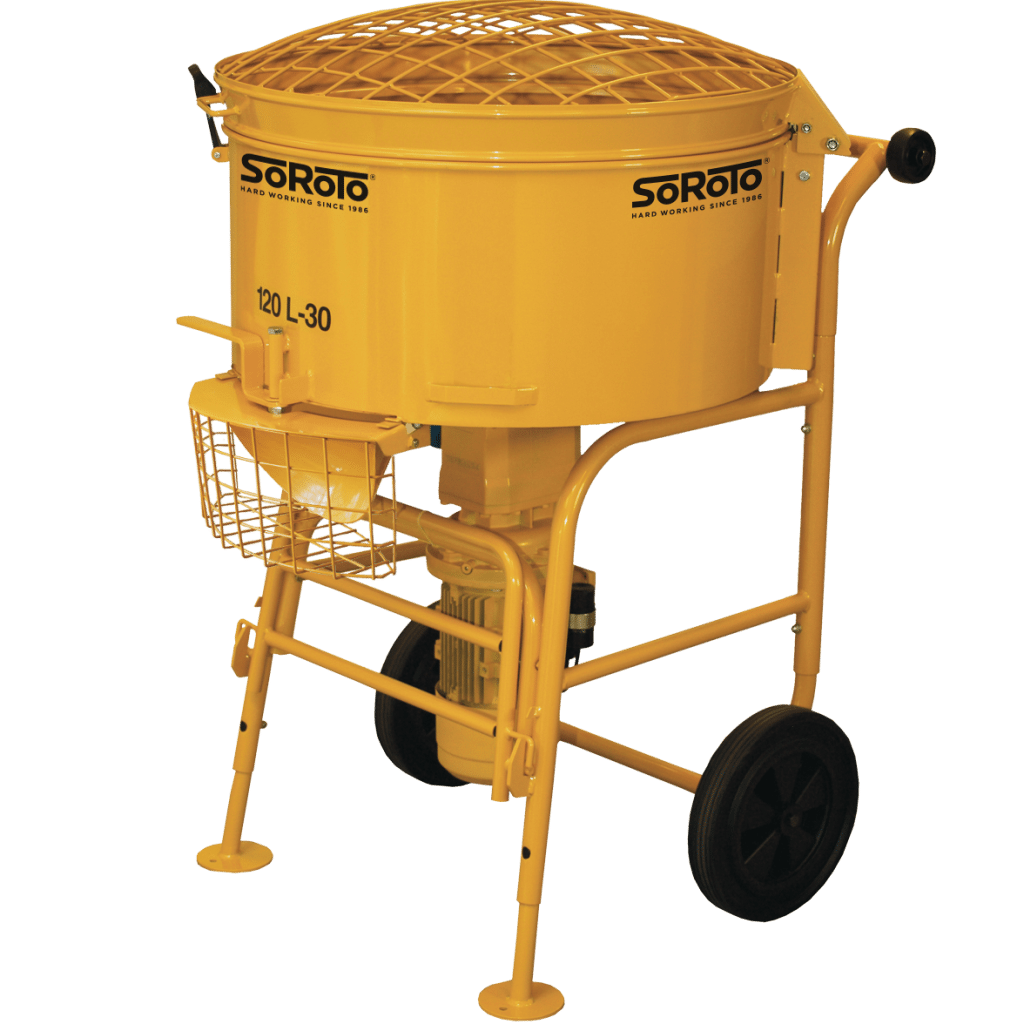

120L
Mixing Capacity (L): 120
Mixing Capacity (KG): 280
Current: 110v/230v
Motor: 1.8kW
Weight: 105KG
Height: 1090-1270mm
Width: 720mm
Depth: 950mm
Suitable for almost any mixing jobs from Resin Bound Gravel to Wet Pour Rubber and Liquid Concrete, the 120L will perform fantastically on its first mix right to its last. The mixer performs so well thanks to its specially designed mixer arms that reach places other mixers can only dream of!
Thanks to its single-phase motor, delivering 30RPM the machine can last all day as long as the correct transformer is used,5kVA 110v Transformer. With adjustable front legs and a mixing capacity of 120 litres, the 120L can be used for the biggest and most awkward of jobs. Along with other features such as plastic tyres, SoRoTo Mixers are the industry leaders due to their durability, innovation and ease of use.
When making your purchase of a SoRoTo mixer, it will ship with steel blades as standard. These steel blades are the most common option in the UK and are durable and solid, designed for hard and intensive use. When mixing materials containing aggregates 8mm and larger, rubber paddles should be used to prevent damage to the gearbox, motor and aggregate will not become stuck between the blades and the pan. By using rubber blades, they will offer an amount of flexibility, meaning the load on the gearbox is reduced. We recommend that you consider this when placing your order and purchase a rubber set of blades/arms if you are likely to work with larger material.
With service lives of up to 20 years, you can be assured that your mixer will not only perform well but will do so consistently for a long, long time. Should you have any issues with your mixer do not worry, as we are the UK’s only SoRoTo repair and service centre and can help you with any problems you do have.

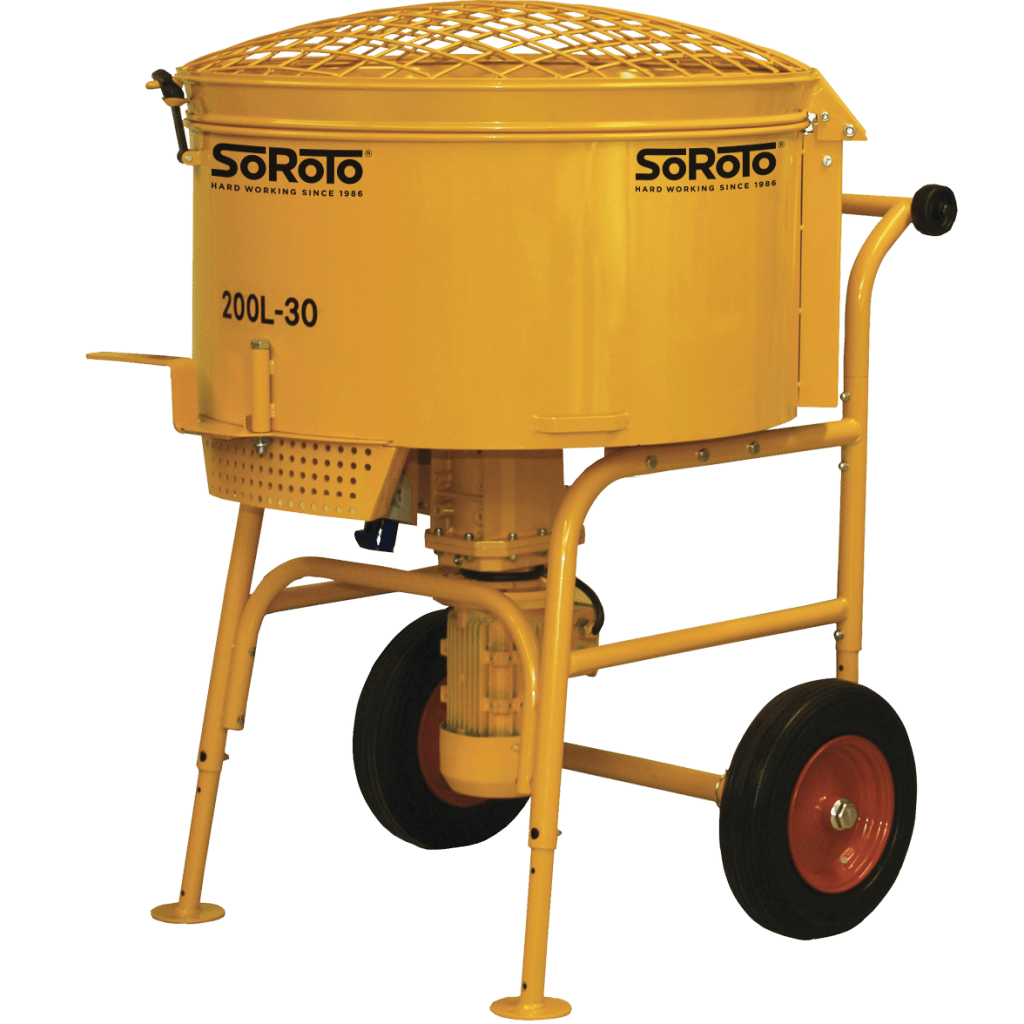

200L
Mixing Capacity (L): 200
Mixing Capacity (KG): 468
Current: 110v/400v
Motor: 2.2kW
Weight: 175KG
Height: 1280-1380mm
Width: 890mm
Depth: 1040mm
Pan mixer for larger construction projects
Along with its specially selected 2.2kW motor and whilst still delivering 30rpm the mixer performs fantastically well in almost any circumstances when using the correct 3-phase 400v generator (400v machine) or 5kVa 110v transformer (110v machine). Unlike with other large mixers, this machine can be easily transported and used on slanted and hard to reach areas due to its adjustable legs. And with a service life of up to 20 years, being able to take the mixer with you on uneven surfaces will save you a lot of time.
The 200L is also suitable for multiple jobs including but not limited to, Resin Bound Gravel, Concrete Liquid, Liquid Screed and Wet Pour Rubber. The versatile mixer will create great results from its first mix to its last.
Forced Action Mixers
Forced Action Mixers are ideal for almost any mixing job performed by professionals. If you are mixing material containing aggregate 8mm or larger, we highly recommend using rubber paddles to help reduce strain on the motor and avoid jamming aggregate between the pan and the paddle.
The machines are built for efficiency, safety and durability. All SoRoTo mixers are built from high quality components, to withstand the toughest environment and for long-lasting use.
SoRoTo was established in 1986 and are established as a leading supplier of pan mixers and belt conveyors. Products have a service life of more than 20 years – and the company spends at least three years testing and developing units before they are launched to market.
Forced Action Mixers have superior force – compared to traditional cement mixers – meaning it cuts down the mixing time. Most mixes only take 3-5 minutes using a forced action mixer.
Please note: We would highly recommend using a maximum 10m long extension cable with your SoRoTo 200L.
